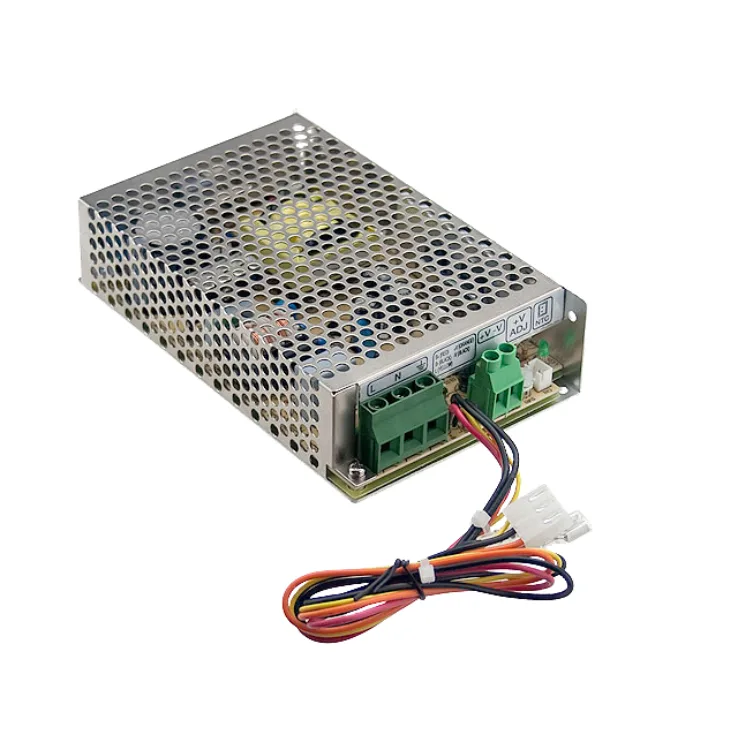

MEAN WELL SCP-75 Series Chargers 75W

Download Datasheet
Models:
  • SCP-75-12
  • SCP-75-24
Manufacturer: MEAN WELL
Type: Chargers

SCP-75 Series Features:

No load power consumption <0.75W

Protections: Short circuit/ Overload/ Over voltage/ Battery polarity (by fuse)

Other Features:

  • Universal AC input/ full range
  • Cooling by free air convection
  • LED indicator for power on
  • Temperature compensation function (by external thermistor)
  • 100% full load burn-in test
  • 2 years warranty
Wattage 75 75
Input Voltage 85~264VAC or 120~370VDC 85~264VAC or 120~370VDC
Output Current 0~5.4 0~2.7
Output Voltage 13.8 27.6
Output Voltage Options Single Single
DC output adjustment 95%~115% rated output voltage 95%~115% rated output voltage
Dimensions 159 x 97 x 38 159 x 97 x 38
Working Temperature -20~+60°C
Safety Standards UL60950-1 approved
EMC Standards EN55022 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11, EN55024, EN61000-6-1
