MEAN WELL HBG-200 Series High/Low Bay LED Drivers 196.8–198W

Models:	HBG-200-36 HBG-200-48 HBG-200-60
Manufacturer:	MEAN WELL
Type:	High/Low Bay LED Drivers

HBG-200 Series Features:

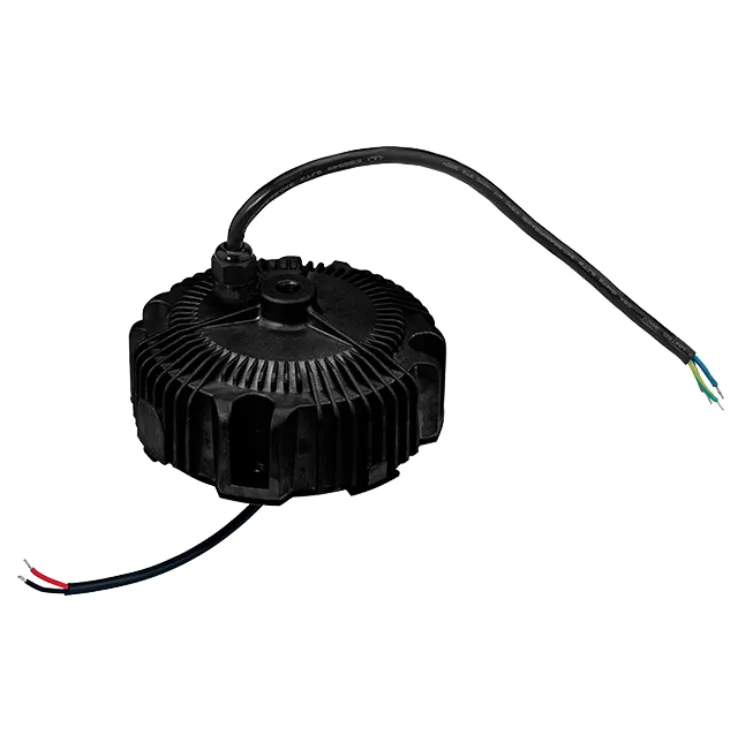

HBG-200 series is a 200W AC/DC LED driver featuring the circular shape design. It operates from 90~305VAC and offers the dual modes constant voltage and constant current output models with different rated voltage between 36V and 60V.

Features:

Constant voltage + Constant current mode output
Circular metal housing with class I design
Built-in active PFC function
IP67/IP65 rating for indoor or outdoor installations
Function options: output adjustable via potentiometer; 3 in 1 dimming; DALI
Typical lifetime >50000 hours
5 years warranty

Spec	HBG-200-36	HBG-200-48	HBG-200-60
Wattage	198	196.8	198
Input Voltage	90~305VAC 127~431VDC	90~305VAC 127~431VDC	90~305VAC 127~431VDC
Output Current	5.5A	4.1A	3.3A
Output Voltage	36V	48V	60V
Dimensions	refer to mechanical specification	refer to mechanical specification	refer to mechanical specification
Working Temperature	Tcase=-40~+85°C
Safety Standards	UL8750(type"HL"), CSA C22.2 No.250.13-12, ENEC EN61347-1, EN61347-2-13 independant, EN62384; GB19510.14, GB19510.1; EAC TP TC 004, IP65 or IP67 approved
EMC Standards	Compliance to EN55015, EN61000-3-2 Class C (@load≥60%); EN61000-3-3; GB17625.1, GB17743, EAC TP TC 020
