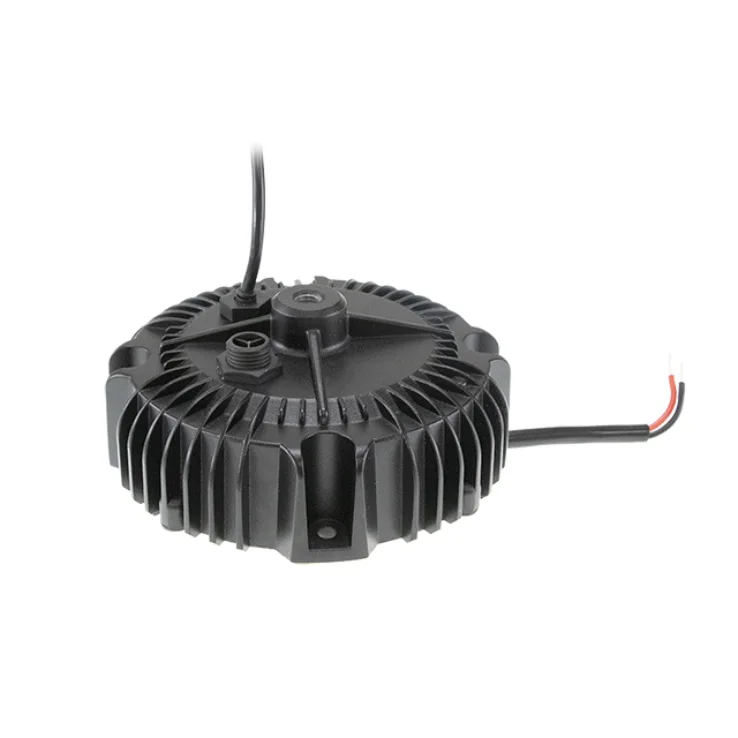

Mean Well XBG-160 Series High/Low Bay LED Drivers 160W

Download Datasheet
Models:
  • XBG-160-A
  • XBG-160-AB
  • XBG-160-A-C
  • XBG-160-AB-C
Manufacturer: Mean Well
Type: High/Low Bay LED Drivers

XBG-160 Series Features:

Constant power adjustable via built-in potentiometer

Full power output at 70~100% constant power mode operation

Other features:

  • Wide input range 90~305VAC with active PFC function
  • Patented metal housing design with IP67
  • Function options: output adjustable via potentiometer; 3 in 1 dimming (dim-to-off and Isolation design)
  • Typical lifetime >50000 hours and 5 years warranty
  • AC input cable with connector for flexible application
Wattage 160 160 160 160
Input Voltage 90-305VAC 90-305VAC 90-305VAC 90-305VAC
Output Current -56V -56V -56V -56V
Output Voltage 34 34 34 34
Output Voltage Options Single Single Single Single
DC output adjustment 1425-4100mA 1425-4100mA 1425-4100mA 1425-4100mA
Dimensions R151.5 x 60 R151.5 x 60 R151.5 x 60 R151.5 x 60
Working Temperature -40 - +90C
Safety Standards UL8750(type b
EMC Standards EN55015(CISPR15), EN61000-3-2, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11,
