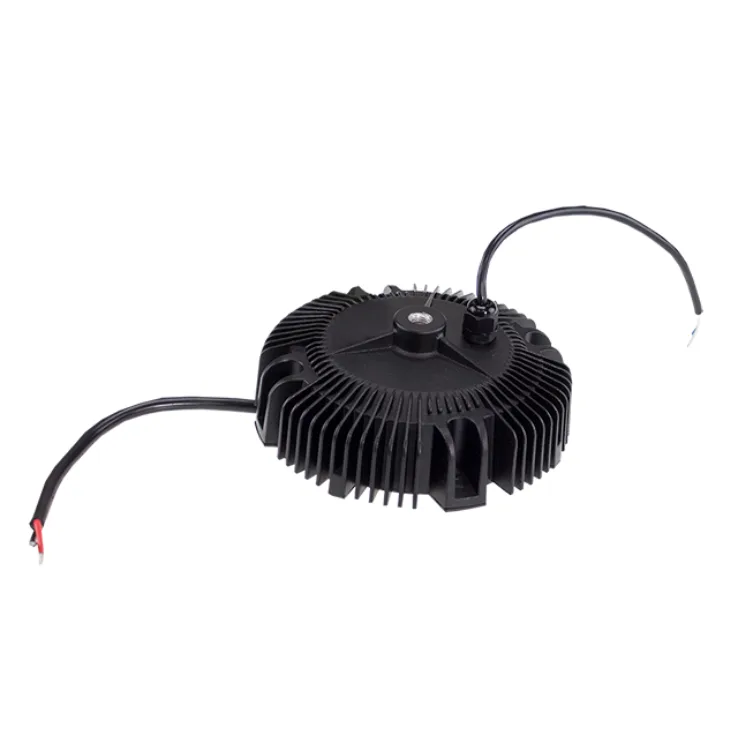

MEAN WELL HBGC-300 Series High/Low Bay LED Drivers 300W

HBGC-300 Series Features:

Wide input range 90-305VAC

Full power at 60-100% max current (Constant power)

Other features:

Built-in active PFC function
IP67 design for indoor and outdoor installations
Function options: output adjustable via potentiometer; 3 in 1 dimming (dim-to-off and Isolation design), DALI2 dimming
Typical lifetime >50000 hours and 5 years warranty
MEAN WELL patented circular metal housing with class I design (patent no.: CN201220314551)

Spec	HBGC-300-H	HBGC-300-L	HBGC-300-M
Wattage	300	300	300
Input Voltage	90-305VAC, 127-431VDC	90-305VAC, 127-431VDC	90-305VAC, 127-431VDC
Output Current	8670mA	2170mA	4330mA
Output Voltage Options	Single	Single	Single
DC output adjustment	5200-8670mA	1300-2170mA	2600-4330mA
Dimensions	R191.5 x 69	R191.5 x 69	R191.5 x 69
Working Temperature	-40 - +80°C
Safety Standards	UL8750(typeb
EMC Standards	Compliance to EN55015, EN61000-3-2 Class C (); EN61000-3-3,EAC TPTC 020, Compliance to EN61000-4-2,3,4,5,6,8,11, EN61547, light industry level (surge immunity Line-Earth 6KV, Line-Line 4KV),EAC TPTC 020
