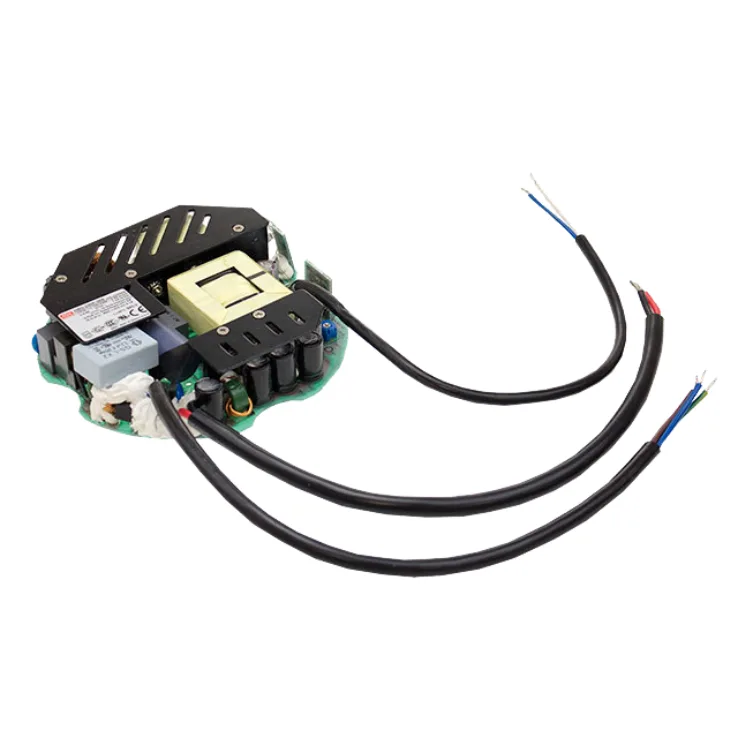

Mean Well HBG-240P Series High/Low Bay LED Drivers 240W

Download Datasheet
Models:
  • HBG-240P-36
  • HBG-240P-48
  • HBG-240P-60
Manufacturer: Mean Well
Type: High/Low Bay LED Drivers

HBG-240P Series Features:

Constant Current + Constant Voltage mode output

Circular PCB type design

5 years warranty

Protections: Over current / Over voltage / Over temperature

Other features:

  • Function options: output adjustable via potentiometer; 3 in 1 dimming
  • Built-in active PFC function
  • Typical lifetime >50000hours
Wattage 240 240 240
Input Voltage 90-305VAC 90-305VAC 90-305VAC
Output Voltage 36 48 60
Output Voltage Options Single Single Single
Dimensions C C C
Working Temperature -40B0C-+45B0C
Safety Standards UL8750,CSA C22.2 No. 250. 13-12; ENEC EN61347-2-13,EN62384, GB19510.1,GB19510.14 approved
EMC Standards Compliance to EN55015, EN55022 (CISPR22) Class B, EN61000-3-2 Class C (@load >75%) ; EN61000-3-3, GB17743, GB17625.1 Compliance to EN61000-4-2,3,4,5,6,8,11, EN61547, light industry level (surge immunity; Line-Earth;4KV, Line-Line; 2KV)
