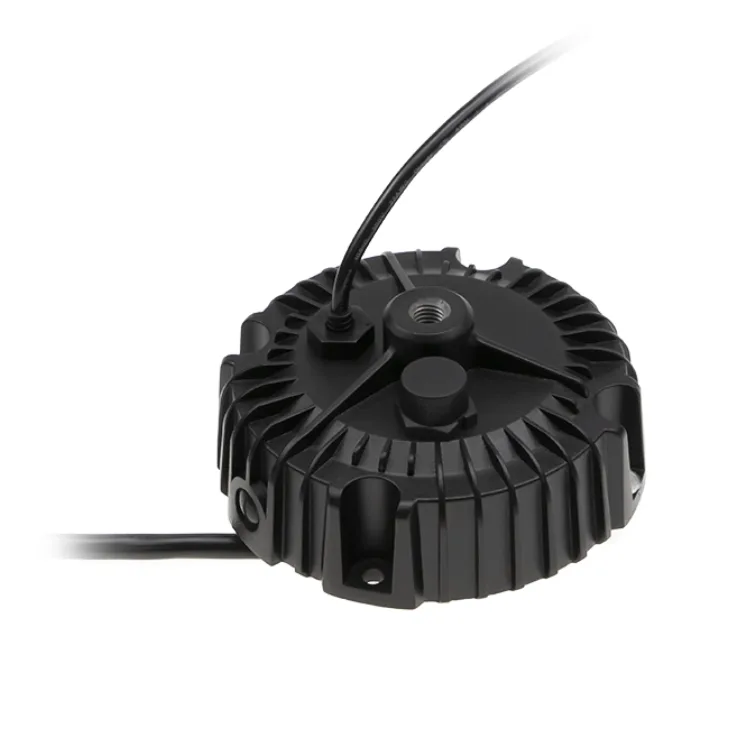

MEAN WELL XBG-100 Series High/Low Bay LED Drivers 100W

Download Datasheet
Models:
  • XBG-100-A
  • XBG-100-A-C
  • XBG-100-AB
  • XBG-100-AB-C
Manufacturer: MEAN WELL
Type: High/Low Bay LED Drivers

XBG-100 Series Features:

Full power output at 70-100% constant current mode operation

Wide input range 90-305VAC with active PFC function

Other features:

  • Patented metal housing design with IP67
  • Function options: output current adjustable, 3 in 1 dimming (dim to off and Isolation) design
  • Typical lifetime >50000 hours and 5 years warranty
  • AC input cable with connector for flexible applications
Wattage 100 100 100 100
Input Voltage 90-305VAC 90-305VAC 90-305VAC 90-305VAC
Output Current -56V -56V -56V -56V
Output Voltage 27 27 27 27
Output Voltage Options Single Single Single Single
DC output adjustment 1750-2780mA 1750-2780mA 1750-2780mA 1750-2780mA
Dimensions 130 x 56 130 x 56 130 x 56 130 x 56
Working Temperature -40C - +85°C
Safety Standards UL8750(typeb
EMC Standards EN55015(CISPR15), EN61000-3-2, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11
