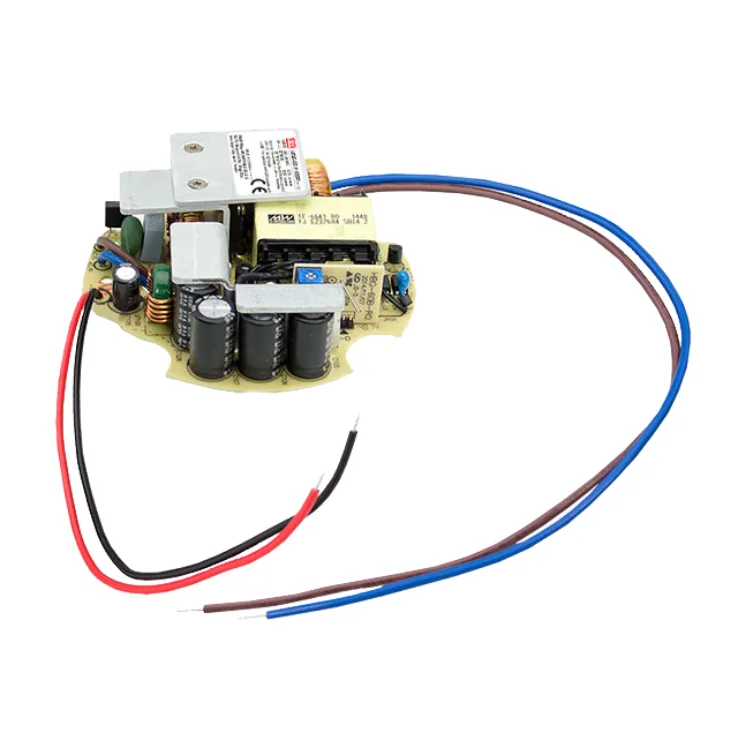

MEAN WELL HBG-60-P Series High/Low Bay LED Drivers 57.75–60W

Download Datasheet
Models:
  • HBG-60-1050P
  • HBG-60-1400P
  • HBG-60-2100P
Manufacturer: MEAN WELL
Type: High/Low Bay LED Drivers

HBG-60-P Series Features:

Constant current design

5 years warranty

Protections: Short circuit / Over temperature

Other features:

  • Universal AC input / Full range (up to 295VAC)
  • Built-in active PFC function
  • High efficiency up to 91%
  • Cooling by free air convection
  • Fully isolated plastic case
  • Class II power unit, no FG
  • Class 2 power unit
  • No load power consumption <0.5W
Wattage 57.75 60 60
Input Voltage 90-295VAC 90-295VAC 90-295VAC
Output Current 1050mA 1400mA 2100mA
Output Voltage Options Single Single Single
DC output adjustment 37-55V 28-42V 19-29V
Dimensions 100x 60.5 100x 60.5 100x 60.5
Working Temperature -40-+80°C
Safety Standards UL8750,CSA C22.2 No. 250. 13-12, ENEC EN61347-1 & EN61347-2-13 independent, EN62384 approved
EMC Standards Compliance to EN55015, EN61000-3-2 Class C (>65% load) ; EN61000-3-3, Compliance to EN61000-4-2,3,4,5,6,8,11, EN61547, EN55024, light industry level (Surge 2KV), criteria A
