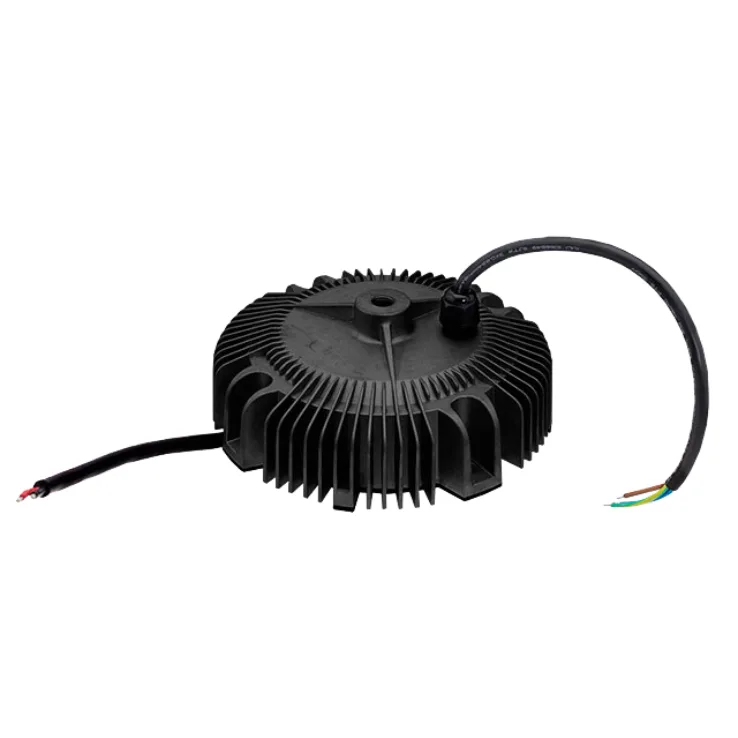

MEAN WELL HBG-240-DA Series High/Low Bay LED Drivers 240W
Download Datasheet
| Models: |
|
| Manufacturer: | MEAN WELL |
| Type: | High/Low Bay LED Drivers |
HBG-240-DA Series Features:
Avaliable from 2013.07
IP67 design for indoor or outdoor installations
Built-in 3 in 1 dimming function (1~10VDC, PWM signal, or resistance)
5 years warranty
Protections: Short circuit / Over current / Over voltage / Over temperature
Other features:
- Universal AC input (up to 305VAC) / Full range
- Built-in active PFC, PF>0.9 for 60% of load or higher
- High efficiency up to 93.5%
- Output current adjustable through output cable or internal potentiometer
- Cooling by free air convection
- Suitable for dry, damp and wet location
- Suitable for LED lighting and street lighting applications
- Meet 4KV surge immunity level (IEC61000-4-5)
- Class 2 power unit
| Wattage | 240 | 240 | 240 | 240 |
|---|---|---|---|---|
| Input Voltage | 90~305VAC, 127~431VDC | 90~305VAC, 127~431VDC | 90~305VAC, 127~431VDC | 90~305VAC, 127~431VDC |
| Output Voltage | 24 | 36 | 48 | 60 |
| Output Voltage Options | Single | Single | Single | Single |
| Dimensions | 162x 162x 69 | 162x 162x 69 | 162x 162x 69 | 162x 162x 69 |
| Working Temperature | -40~+70°C (refer to output derating curve) | |||
| Safety Standards | UL8750, EN61347-2-13 | |||
| EMC Standards | EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547, light industry level (surge 4KV). criteria A | |||
