MEAN WELL

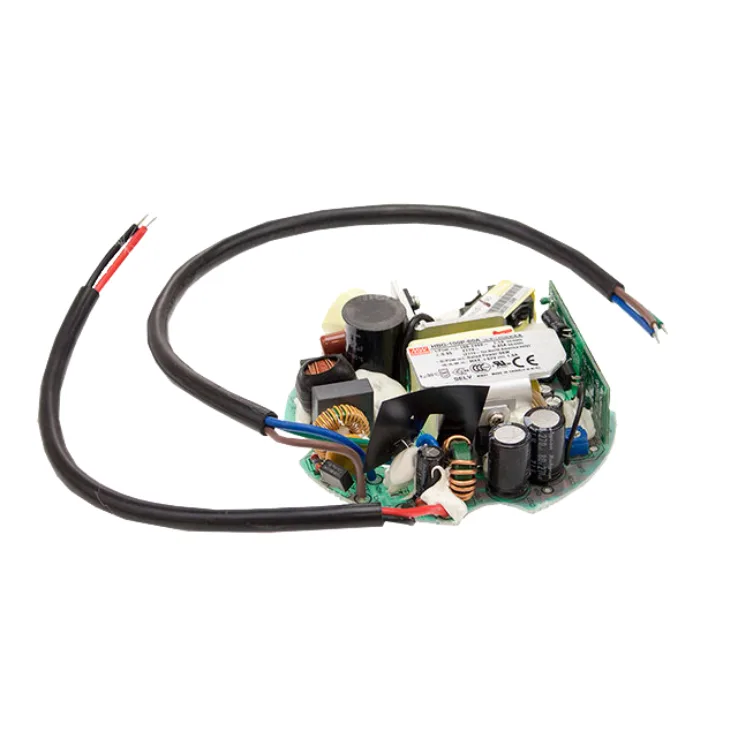

MEAN WELL HBG-100P Series High/Low Bay LED Drivers 96–97.2W
Download Datasheet
| Models: |
|
| Manufacturer: | MEAN WELL |
| Type: | High/Low Bay LED Drivers |
HBG-100P Series Features:
Constant Current mode output
Circular PCB type design
5 years warranty
Protections: Over current / Over voltage / Over temperature
Other features:
- Function options: output adjustable via potentiometer; 3 in 1 dimming
- Built-in active PFC function
- Typical lifetime >50000hours
| Wattage | 97.2 | 96 | 96 |
|---|---|---|---|
| Input Voltage | 90-305VAC | 90-305VAC | 90-305VAC |
| Output Voltage | 36 | 48 | 60 |
| Output Voltage Options | Single | Single | Single |
| Working Temperature | -40-+45°C | ||
| Safety Standards | UL8750,CSA C22.2 No. 250. 13-12; ENEC EN61347-2-13,EN62384, GB19510.1,GB19510.14 approved | ||
| EMC Standards | Compliance to EN55015, EN61000-3-2 Class C (@load >60%) ; EN61000-3-3, GB17743, GB17625.1 Compliance to EN61000-4-2,3,4,5,6,8,11, EN61547, light industry level (surge immunity:Line-Earth:4KV,Line-Line;2KV) | ||
